Laser engraving is generally used when a project calls for precise, permanent markings. It offers a way to create fine detail on a range of materials, like metal or wood, without relying on inks or physical cutting tools. Because of this, it shows up in both industrial settings and custom fabrication work.
If you’re looking to understand how laser engraving works, it helps to start with the basics. This guide defines the process, explains the underlying mechanics, and outlines how it compares to other marking methods so you can evaluate where it fits.
Quick Answer: What is Laser Engraving?
Laser engraving uses a focused beam of light to vaporize microscopic layers of material. This creates permanent, high-contrast marks on metals, plastics, wood, glass, and other surfaces without inks or contact tools.
A Closer Look
Laser engraving is a material removal process driven by a high-energy beam. Instead of applying a mark or melting a surface layer, the laser removes material by ablation, cutting into the substrate to form permanent grooves.
It helps to separate a few closely related terms:
- Engraving vs. etching: Engraving vaporizes material, while etching melts only the surface.
- Engraving vs. marking: Engraving creates depth; marking changes color or surface texture without removing material.
When durability and clarity matter, engraving is typically the better fit.
How Laser Engraving Works
At its core, laser engraving concentrates energy into a very small beam, often less than 0.1 mm wide. When this beam hits the surface, the energy breaks molecular bonds and ejects material in a controlled way.
Key interactions include:
- Ablation: Rapid vaporization of material layers without significant melting.
- Sublimation: Direct transition from solid to gas under high energy.
Several parameters influence the final result:
- Pulse duration: Shorter pulses reduce heat buildup and limit damage to surrounding areas.
- Wavelength: Fiber lasers (around 1,064 nm) perform well on metals, while CO2 lasers (around 10,600 nm) are better for organic materials like wood and acrylic.
Equipment and Process Overview
A typical laser engraving system includes three primary components:
- Laser source: Generates the beam, commonly fiber or CO2.
- Beam delivery system: Uses mirrors, lenses, and scanners to guide and focus the beam.
- CNC controller: Reads design files and controls power, speed, and pulse rate.
Supporting systems are just as important. Fume extraction removes debris and vapors, while cooling systems maintain consistent operating conditions. Safety enclosures and interlocks protect operators during use.
Materials and Applications
Common Materials
Laser engraving works across a wide range of materials:
- Metals: Stainless steel, aluminum, titanium, often engraved up to about 0.5 mm deep

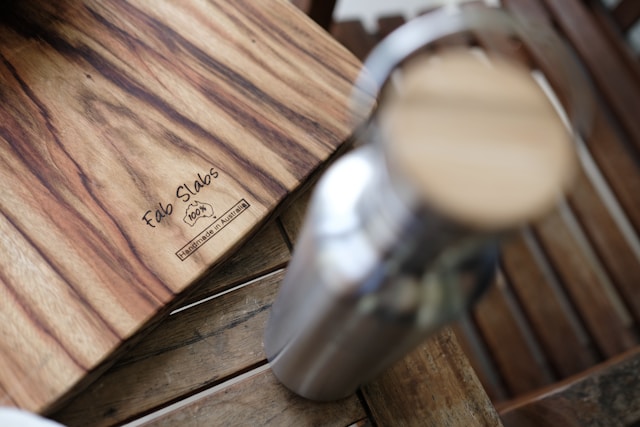

- Wood: Maple, alder, walnut, bamboo, commonly used for signage, boxes, cutting boards, picture frames, plaques, and decorative items
- Plastics: Acrylic, Delrin, polycarbonate for panels and prototypes
- Glass and stone: Used for drinkware, awards, and memorial pieces
Specialty Substrates
- Coated metals such as powder-coated steel
- Composite materials like carbon fiber and laminates
Typical Applications
- Industrial traceability: Serial numbers and data codes for manufacturing
- Personalization: Logos, monograms, and custom designs
- Functional surfaces: Micro-textures for grip or fluid control in engineered parts
Final Thoughts on Laser Engraving
Laser engraving offers a reliable way to create permanent, high-detail markings across many materials. Once you understand the process and variables, small adjustments in power, speed, and material can significantly improve results.
If you’re starting out, test different settings on sample pieces and document what works. That consistency will carry through to every finished product.
